PE406S

  • 9 Stored joules
  • 6 Output joules

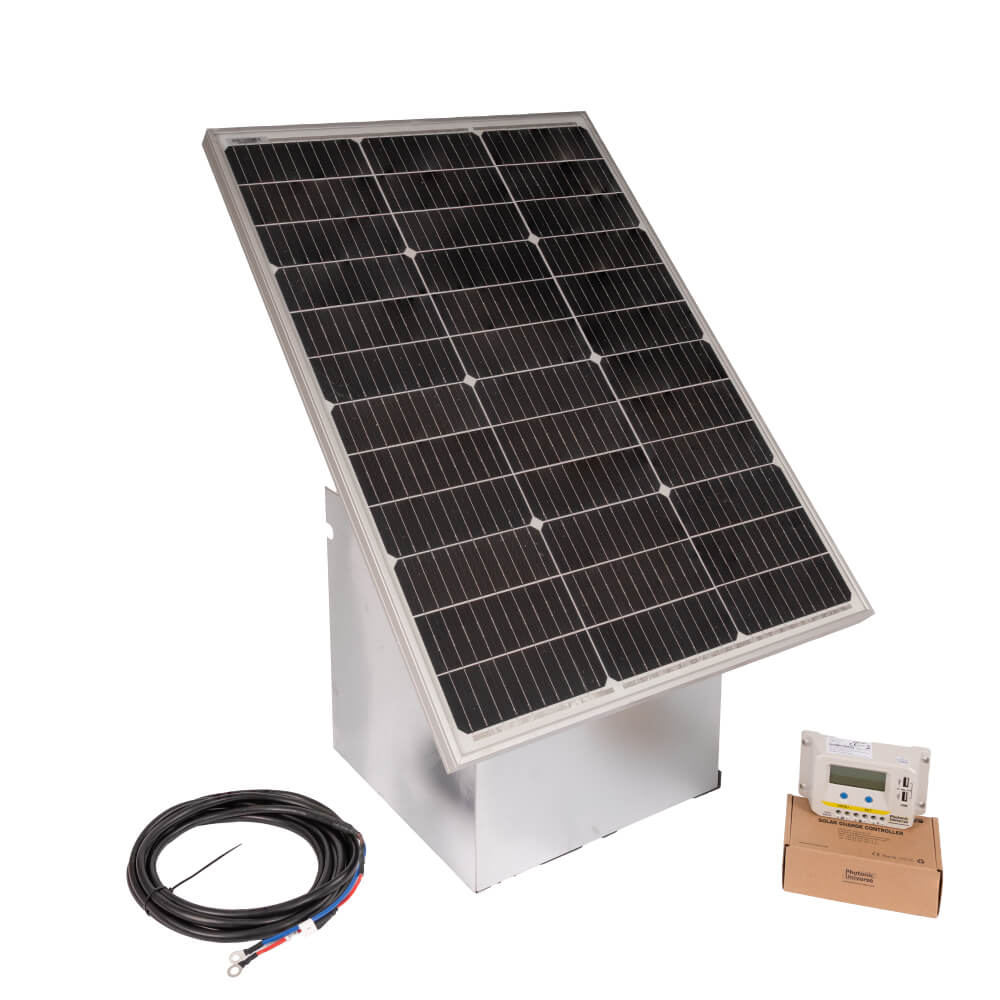

  • 12 volt 80 watt solar panel including control box and cable
  • Fence up to 90 acres
  • Power 30 miles/50 km of high tensile wire
  • Needs 4 x 5ft earth bars
  • Battery size: 12v 120amp/hr tractor battery or Deep Cell Leisure battery (Battery not included)
  • Battery test function
SKU: PE406S Category: Brand:
100 Ohms is the resistance caused by heavy vegetation growth on the fence wire

MODEL

STORED

JOULES

OUTPUT

JOULES

NO LOAD

500 OHMs

100 OHMs



50 OHMs

PE406S 9 6 9500 6800 3100 1600
PE403S 5.2 3 11300 6200 2300 1200
PE402S 3.5 2 11000 5900 2100 1000
PE401S 2 1 9850 5300 1900 900

* All PEL solar panels are universal.

We can convert your existing 12v battery fencer (any make) to a solar energiser.
